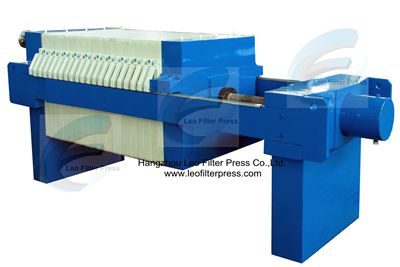

Manual FilterPress,Complete Manual Operation Hydraulic Filter Press from Leo Filter Press
Leo FilterPress,the Filter Press Manufacturer from China,offer Different Operation andCapacity Filter Press
FilterPress Style: horizontal side bar design filter press
FilterPress Plate Style:recessed chamber filter plate/gasket filter plate/mixed packfilter plate(membrane chamber filter plate)
FilterPress Cloth Available: normal non gasketed type filter cloth with neckconnection/gaketed type filter cloth for CGR designed gasketed type filterpress
FilterPress Closing Method: special designed manual hydraulic system for closing/automatichydraulic system available
HydraulicClosing Pressure Keeping Method: mechanical or automatic
FilteringPressure Available: 0.6Mpa to 2.0Mpa
FilteringTemperature Endurable: room temperature to 120 centi degree
StandardFilter Cake Thickness: 25mm
ChamberCapacity: please refer to the “Leo Filter Press X400 Working and OperationSpecification List” as blow:
Specialplate shifting system design,easy to shif filter plates after every filteringcycle,less operation intensity
Leo Filter Press X400 Chamber Filter Press Design and OperationSpecification Data
Filter Press Model | Filtering Area (m2) | Filter Plate (pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
X | A M | J1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
X | A M | J1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
X | A M | J2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
X | A M | J2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
X | A M | J3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
X | A M | J4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
X | A M | J5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
Leo Filter Press XG400 Membrane FilterPress Design,Sizing and Operation Specification List
Filter Press Model | Filtering Area (m2) | Filter Plate(pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
X | A M | JG1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
X | A M | JG1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
X | A M | JG2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
X | A M | JG2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
X | A M | JG3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
X | A M | JG4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
X | A M | JG5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
Uppermentioned specifications only for filter press sizing reference
Anymodification of X400 filter press specification will be informedseparately, for Leo filter press users,please refer "Leo Filter Press Operationand Maintenance Manal" for more detailed installation,working,operationand maintenance information.
