ChamberFilter Press Operation and Working Instructions from Leo Filter Press
FilterPress Design and Working Information for Chamber Filter Press with Detailed FilterPress Operation Instructions
chamberfilter press can be devided into manual and automatic two kinds,manualoperating chamber filter press is the same as the plate and frame filterpress,the whole filter press set has filter press frame,closing system,filterplate and other filter press parts.Its closing method available are manualclosing,mechnical closing and hydraulic closing,filtering functions alsofamilar as plate and frame filter presses.The main difference between chamberfilter press and plate & frame filter press is the filter plate,chamberfilter press's chamber consisted by two filer plate which next to eachother.Due to chamber filter press's structure characteristics,cake dischargingjust open its filter plates,more convience than plate and frame filterpress,chamber filter press can have higher automatic design than plate andframe filter press.

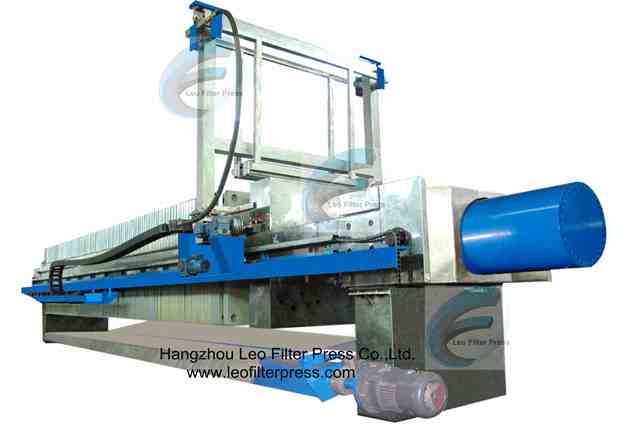

Automaticchamber filter press has various kinds of design,but the most popular ones arehorizental filter press frame+chamber filter plate+filter plate carrier whichwill move forward and backward to shift filter plates.For automaticworking,from simple automatic functions to high degree fully automaticoperation ,chamber filter press can be desined and installed related device tofulfile automatic operation according to user's requirements
chamberfilter press works familar as plate and frame filter press,both of them arefilter cake filtration,but difference is their chamber formation.Chamber Filterpress's filtering chamber consists of two recessed chamber filter plate next toeach other,which will bring us high working efficiency for filter cakedischarging,all the filter cakes can be discharged by its own gravity,also itsexisting make membrane filter plate arrangement more convience.
thechamber filter press consists the following parts:
1.filtering media

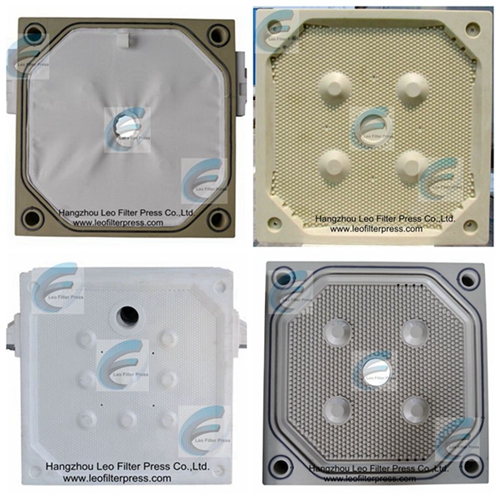

filterplate and filter cloth
2.closing system
byhydraulic closing from the hydraulic cylinder to seal all the chamberscompletely and tightly
3.filter plate moving device
filterplate shifting is automatic cake dumping device,includes:mechanialdriving,singnal sending and mechanical carrying out units
4.filter cloth washing device
Afterchamber filter press working for severy cycles,there will be more and moreremained cakes on filter cloth surface,some filter cloth slot was blocked bythe solids and less water permeability,higher adhere ability for filter cakeand filter cloth,then hard to discharge filter cakes.Then all the filer clothneed to be washed to regain its filtering ability,washing water can wash awayall the adhered solids and to get reborn filter cloth by washing
5.filter press frame
connectedthe upper metioned five filter press parts to be a filter press frame
6.hydraulic system
hydrualicmovement can fulfile force and movement adjustment
7.automatic feeding system
automaticfeeding,cake dewatering,cake washing etc.all the wastewater feeding,washingwater supplying and filtrate collecting will be controlled by automatic valvesand pumps
8.autoamtic electrical controlling system
tobe controlled by a controlling cabinet,connect every filter press parts' sensorand working units,let them work according to programmed mechnial automaticoperation.
