Small Filter Press from Leo Filter Press,the FilterPress Manufacturer from China,offer Different Capacity Filter Presses
Small Capacity Filter Press from Leo Filter Press,FilterPress Operation with Manual Hydraulic System
X400 Series Filter Press Model: Leo Filter Press X400chamber recessed filter press/ Leo Filter Press X400 Membrane Chamber FilterPress
Leo Filter Press X400 series filter presses arewelcomed by filter press users who have small capacity filteringtasks.Sometimes,X400 Series filter presses play a very important role to be atesting equipment to help filter press users to do important testing,for itssmall size,can filter with small capacity suspensions with less operation cost.

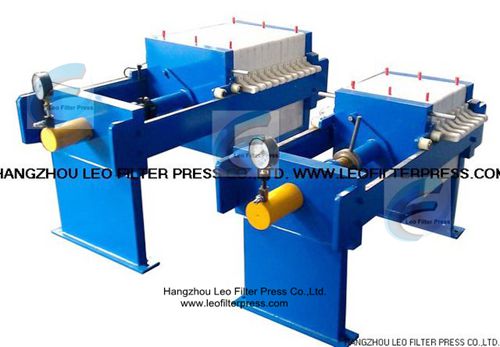

Leo Filter Press X400 Chamber Filter Press
X400 Leo Chamber Filter Press Design and OperationCharacteristics:
1. Leo Filter Press X400 chamber filter press filterplates dopt patent mould pressing filter plate producing technology,highintensity with light weight, easy for filtering and filter cake washing,all thefilter press plates are in high quality manufacturing.2. The filter press frame is made from solid steelfrom welding, which can support the total weight of filter press plates withfilter cakes and the high pressure during filtering
3. Compact and special high intension filter press structuredesign, economic model for small capacity solid-liquid separation.
4. Manual hydraulic closing , few cost for filterpress operation and future maintenance
5. Can be used in various industries, also can belaboratory testing filter press machine.
6. Other special design and filter press parts offeredby Leo filter Press: filter cake cart, drip tray, filtrate gutter etc,
Leo Filter Press X400 Chamber Filter Press BasicDesign and Operation Specifications List
| Filter Press Model | Filtering Area (m2) | Filter Plate (pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| X | A M | J1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | J1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | J2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | J2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | J3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | J4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | J5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
Upper mentioned specifications only for reference
More detailed filter press operation and maintenance information please referto your"Leo Filter Press 400 Filter Press Operation and MaintenanceManal"
Leo Filter Press XG400 Membrane Filter Press
Leo Filter Press XG400 Membrane Filter Press Designand Operation Characteristics
1. Leo Filter Press X400 membrane filter press filter plates adopt patent mouldpressing filter plate producing technology,high intensity with light weight,easy for filtering and filter cake washing,all the filter press plates are inhigh quality manufacturing.
2. Patent membrane plate design from Leo filter press,good sealing ability, longer service time,good elastic membrane squeezingability
3. Compact and special high intension filter press structuredesign, economic model for small capacity solid-liquid separation.
4. Manual hydraulic closing , few cost for filterpress operation and future maintenance
5. Can be used in various industries, also can belaboratory testing filter press machine.
6. Other special design and filter press parts offeredby Leo filter Press: filter cake cart, drip tray, filtrate gutter etc,
Leo Filter Press XG400 Membrane Filter PressDesign,Sizing and Operation Specification Data
| Filter Press Model | Filtering Area (m2) | Filter Plate(pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| X | A M | JG1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | JG1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | JG2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | JG2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | JG3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | JG4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | JG5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
Upper mentioned specifications only for reference
More detailed filter press operation and maintenance information please referto your"Leo Filter Press 400 Filter Press Operation and MaintenanceManal"
