Small Mixed Membrane Chamber Filter Press from LeoFilter Press,Filter Press Manufacturer from China
Membrane Filter Press,Leo Filter Press Membrane FilterPress Operation and Design Instructions

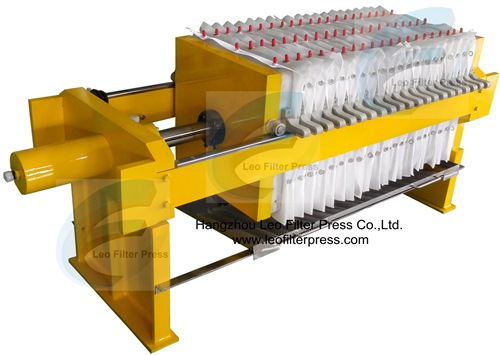

Filter Press Model: LeoXG400 Membrane FilterPress(Membrane Chamber Filter Press Style)
Filter Press Plate Size: 400mmX400mm

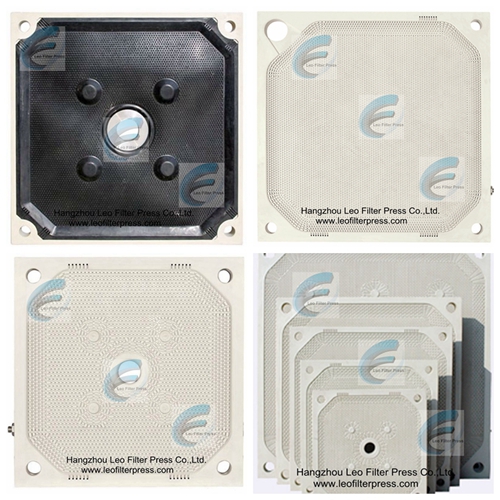

Membrane Filter Press Plates Size: 400mmX400mm
Filter Cake Thickness: 25mm(standard filter cake)
Membrane Filter Plate Material : PP(Polypropylene)
Membrane Sheet Material: rubber (rubber material willbe various according to different material which need to be filtered)
Filter Plate Quantity: Please follow up the blowing “LeoFilter Press XG400 Membrane Filter Press Operation and Design SpecificationList”
Filtering Pressure: 0.6Mpa
Membrane Squeezing Pressure :1.0Mpa
Filter Press Closing Method: Manual hydraulic/electricalhydraulic/automatic hydraulic system
Leo Filter Press XG400 Membrane Filter Press Operationand Design Specification List
| Filter Press Model | Filtering Area (m2) | Filter Plate(pcs) | Chamber Capacity (L) | External Size | Weight (kg) | |||
| X | A M | JG1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | JG1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | JG2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | JG2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | JG3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | JG4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | JG5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
The uppermentioned specifications only for reference,
Leo Filter Pressusers,please follow up “Leo Filter Press XG400 Membrane Filter Press Operation and MaintenanceManual”
All the filterpress design modification will be informed separately.
Leo Filter Press XG400 Membrane Filter Press(MembraneChamber Filter Press) Design and OperationCharacteristics
1. Leo FilterPress plates adopt patent filter plate producing technology, high intensity,light weight, anti-corrosion, alkali and acid resistance, nontoxic and odorless
2. All the membranefilter plates from Leo filter press are produced in good sealing ability,longer service time,less membrane sheet damaging rate.
3.Strong filter pressframe design, good filtering performance,can service for longer time, canendure high pressure during filtering and operation.
4. Ecnomicinvestment for the whole system, less cost,the Leo Filter Press XG400 membranefilter press can be used for small capacity industrial filtering projects andsometimes can be used for different Laboratory tests
6. Differentmembrane filter press closing available,easy for filter press operation andmaintenance.
